Superior Mega Elite™ Pontoons

Heavy-duty five-sided concrete pontoons for commercial,
industrial, and private use. Suitable for high load applications.

High Strength Pontoons Built for Long Term Performance

Designed for commercial marinas and heavy duty berthing requirements, the Superior Mega Elite™ Pontoons combine a five sided concrete structure with reinforced construction for superior stability and impact resistance. Their adaptable configurations and protective coatings ensure reliable operation in challenging marine environments.

Superior Mega Elite™ Overview

High strength five sided concrete pontoons designed for demanding commercial marine environments.

Technical Specifications

Reinforced concrete construction with engineered components for stability, durability and high load performance.

Applications & Performance

Reliable performance across commercial marinas, waterfront infrastructure and high load operational sites.

Introducing the Superior Mega Elite™ Pontoons

Superior Mega Elite™ Pontoons are engineered for demanding commercial marine environments where strength, durability and long service life are essential. Their five sided reinforced concrete structure provides superior stability, improved load distribution and exceptional resistance to impact, abrasion and harsh marine conditions.

Designed to perform as mooring pontoons, marina fingers or wave attenuators, they deliver reliable performance across a wide range of waterfront applications.

Five sided reinforced concrete design that increases structural rigidity and impact resistance

High strength concrete deck and wall thickness for long term durability in commercial settings

Expanded polystyrene core for buoyancy and improved load distribution

Reinforced with 50 MPa hot dip galvanised steel, stainless steel or composite bars

Protective coating system applied to exposed polystyrene for enhanced longevity

Built to handle high concentrated loads including fenders, cleats and pile guide connections

Suitable for single unit widths from 2 to 6 metres and lengths up to 20 metres

View Technical Data Speak to an Expert

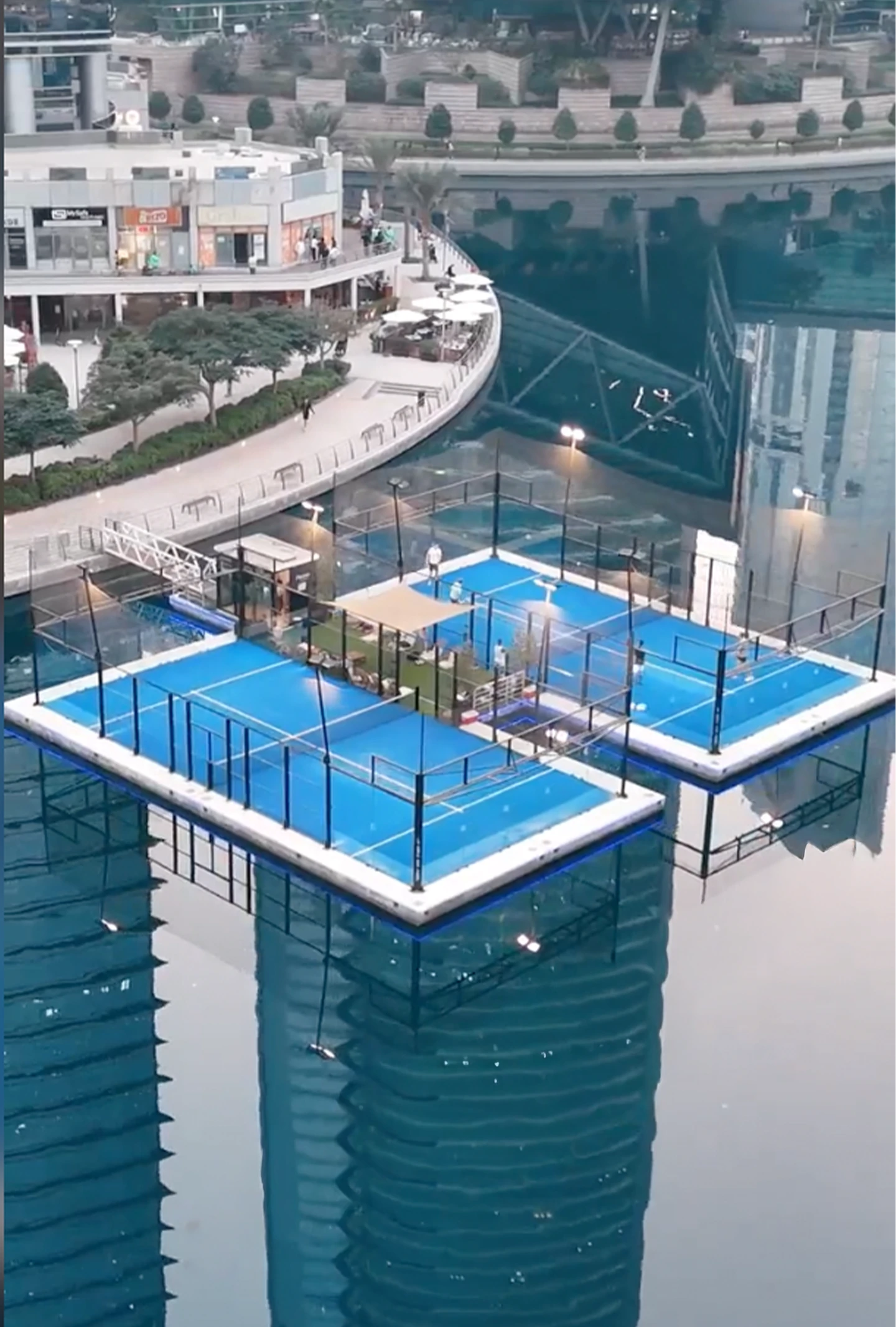

Photo by Rikonavt
Additional feature image one
Additional feature image one

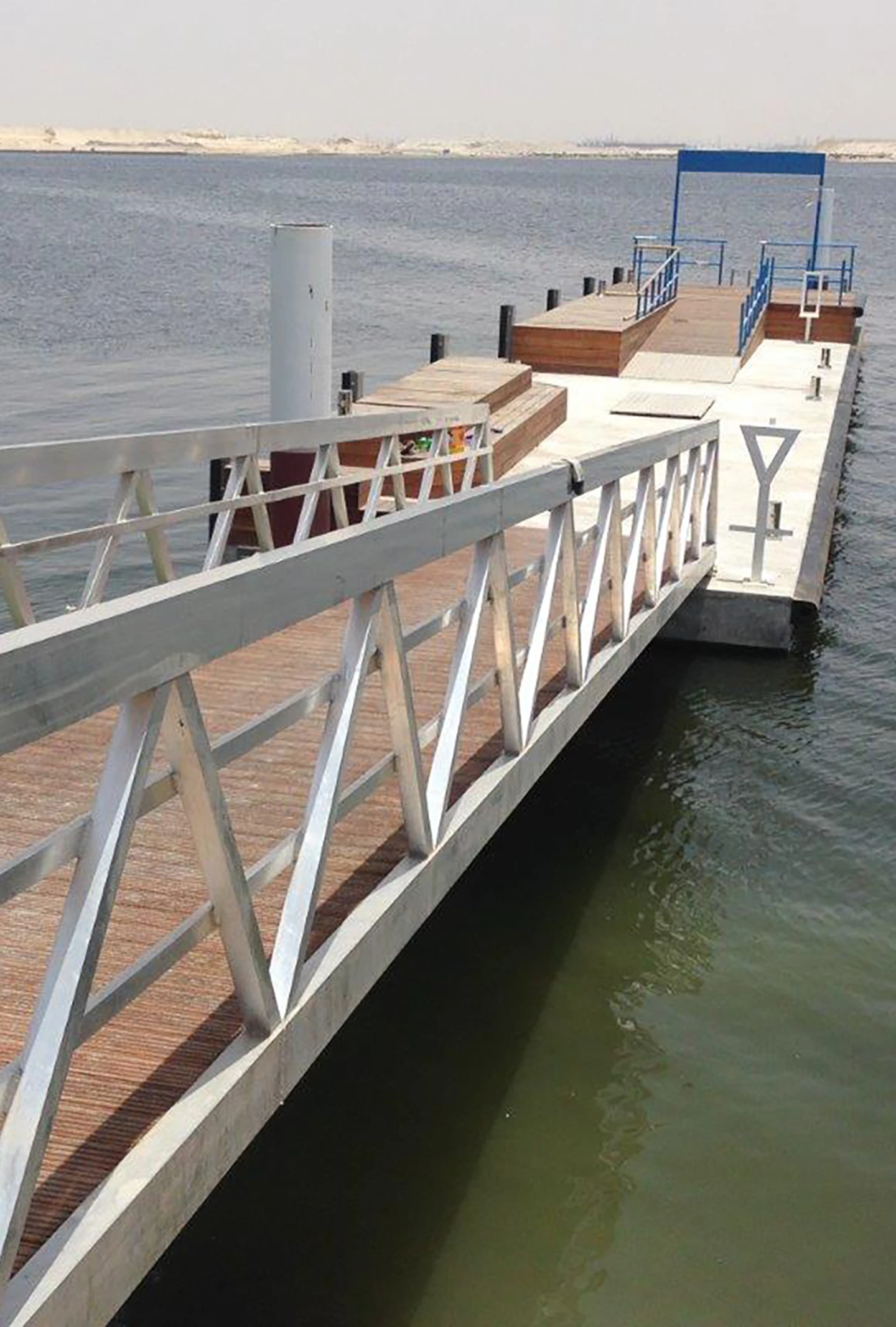

Photo by Europeana

Durable Pontoonsfor Demanding Marine Conditions

Superior Mega Elite™ Pontoons combine reinforced concrete strength with a proven five sided design to deliver dependable performance in high load environments. They offer stable, long lasting support for commercial marina operators seeking robust berthing solutions.

Enquire Now

Technical Specifications

Superior Mega Elite™ Pontoons are constructed using 50 MPa watertight reinforced concrete, enhanced with plastic fibres and corrosion inhibitors to improve durability and structural performance in harsh marine environments.

Reinforcement is provided by 50 MPa hot dip galvanised steel, stainless steel, or composite bars. These materials deliver high tensile strength and long term resistance to corrosion, even under continuous marine exposure.

Each pontoon contains an expanded polystyrene core with a density of 15 kg/m³. This core ensures consistent flotation, balanced load distribution and reliable stability throughout the life of the structure.

A durable elastomeric coating system is applied to all exposed polystyrene surfaces. This protection minimises abrasion, enhances impact resistance and reduces the accumulation of marine growth.

Available accessories include fenders, mooring bollards and other essential hardware. All components are manufactured from marine grade materials such as AISI 316L stainless steel to ensure long term performance.

Superior Mega Elite™ Pontoons are available with a maximum width of 6.0 m, a maximum length of 20.0 m and a maximum height of 1.5 m. Freeboard ranges from 0.5 to 0.7 m, with usable net capacity between 5 and 7 kN/m².
View Technical Data Speak to an Expert

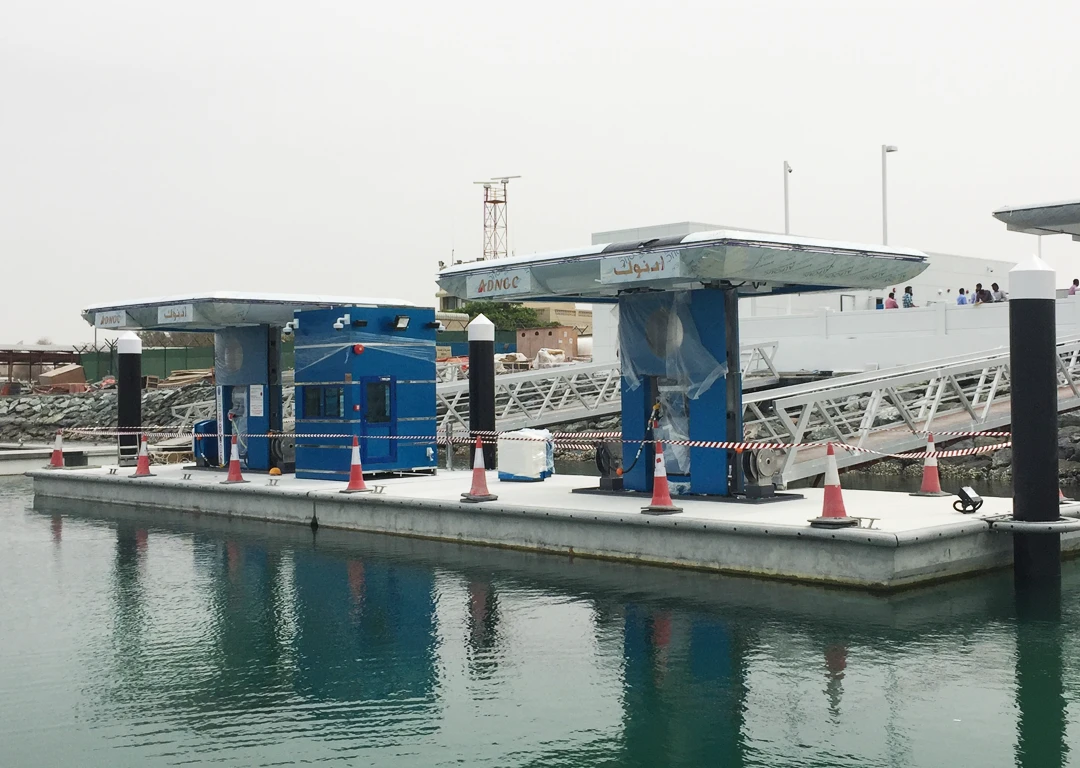

ADNOC Floating Stations, Northern Emirates
ADNOC Floating Stations Northern Emirates

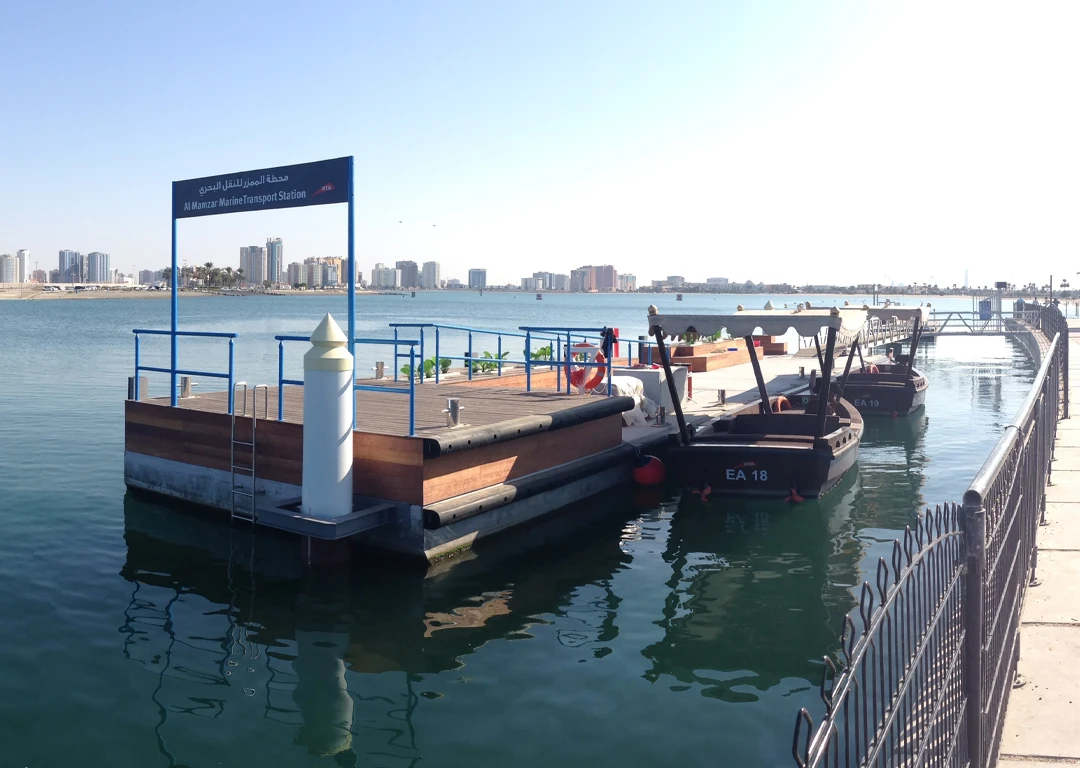

Al Mamzar Station, Dubai Marina (RTA Dubai)
Al Mamzar Station Dubai Marina RTA Dubai
Dubai Offshore Sailing Club
Dubai Offshore Sailing Club Dubai
Supreme Council Pontoon System, Abu Dhabi
Supreme Council Pontoon System Abu Dhabi

Applications & Performance

Superior Mega Elite™ Pontoons are purpose built for commercial marine environments that require high load capacity, structural stability and long term durability. Their reinforced concrete design and five sided structure make them suitable for a wide range of demanding waterfront installations, delivering reliable performance even in harsh conditions.

Where Superior Mega Elite™ Pontoons are used:

Commercial marinas requiring long lasting, stable berthing platforms

Marina fingers designed to support vessel access and secure mooring

Wave attenuators for controlling wave action and protecting harbour infrastructure

Ferry terminals and transport hubs with continuous high load operations

Fishing harbours and working waterfronts exposed to heavy vessel movements

Oil, gas and industrial marine facilities requiring durable concrete platforms

Pump platforms, pipe floats and service pontoons for operational support

Waterfront developments where long term structural performance is essential

Performance Benefits:

High impact resistance suited to busy commercial environments

Stable load distribution through a five sided concrete shell

Reinforced deck and walls providing reliable long term strength

Protective coatings reducing marine growth and maintenance needs

Flexible configuration options for custom marina layouts

Consistent buoyancy and freeboard performance across installations
